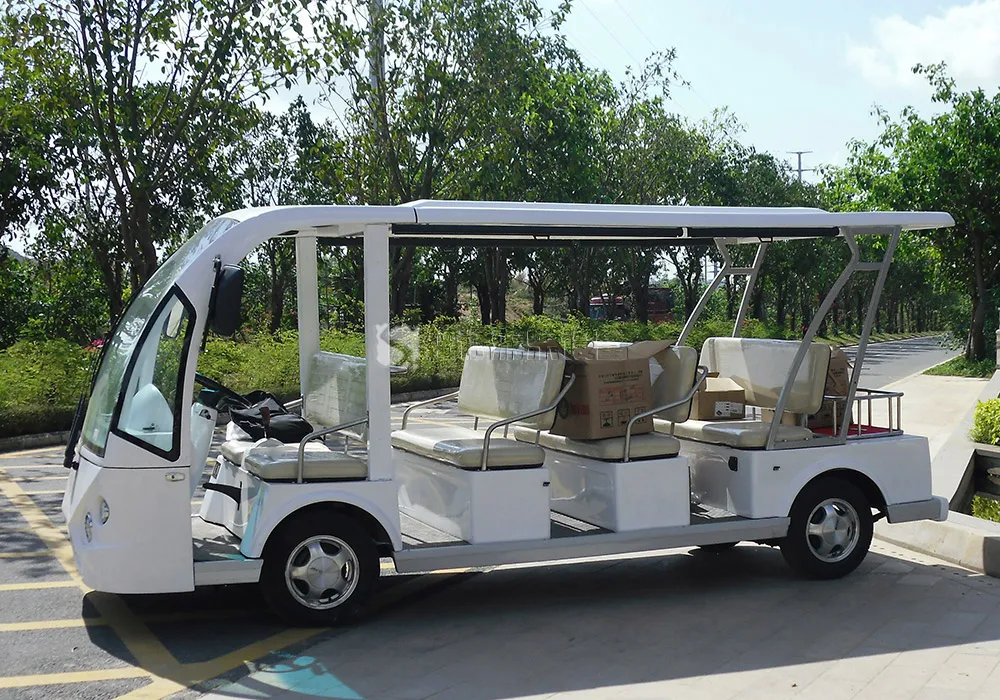

Amusement Park Electric Sightseeing Car Electric Shuttle Vehicles 220V
Marshell electric sightseeing car features:
1. Standard color: White;arractive design and powerful in appearance , with strong carrying capacity and lower noise;
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure
3. Small turning radius; and smart steering system ;Whole style steel rear axle;
4. Can be easy modified to transportation vechicles;
5. CE certificate for whole carts;
6. Import main parts:US batteries( From USA) and Curtis controller(From USA).Delta-Q chargers(From Canada);
7. Four wheels hydraulic braking system and independent parking brake.
| Model | JH-Y06 | Driving range | 60-80km |
| Shape size | 3800*1500*2000mm | Climbing degree | 20% |
| Number of seats | 6 | Minimum turning radius | ≤5m |
| Voltage | 22ov/110v | Vehicle quality | 1100kg |
| Wheel distance | 1210/1200mm | Maximum travel speed | 30km/h |
| Load capacity | 2050kg | Axis distance | 1970mm |
| Initial speed 20km/h braking distance | ≤4.0m | Minimum ground clearance | 150mm |
| Front file | Steel structure plus FRP | Tire | 165/70R13 Jiatong vacuum radial tire |
| Seat | Leather fabric + high rebound PU | Motion transfer system | Stepless speed regulation system |
| Sound | Advanced audio | Body | Steel frame + FRP shell |
| Front axle and suspension | McPherson independent suspension | Steering system | One-way rack and pinion steering gear |
| Rear axle and suspension | Integral rear axle, with a main reduction gear and differential, leaf spring suspension and a hydraulic cartridge Save | Dashboard | Vehicle instrument panel, voltmeter, ammeter, battery indicator, steering indicator, steering beep, power failure alarm and printing instrument |
| Braking system | Four round automobile form hydraulic brake system and independent in vehicle brake | Electronic control | Original IN-POWER AC controller |
Zhengzhou Mythology Amusement Equipment Co., Ltd.
established in 2008, is one of the early start-up companies in China's amusement equipment industry. It is a manufacturer that integrates research, development, design, production and sales of large, medium and small amusement equipment. After years of continuous efforts and polishing and cutting technology, we use new technology to create meticulous and intimate children's play products.
